Although auto electronic products are not fragile, ambient lighting kit may be damaged due to collision, falling, or excessive shaking during transportation. In addition, there are at least dozens of automotive led chips materials inside a light bar or a light panel. Any led strips cannot be excessively bent or hit, otherwise it is easy to cause the led chip of the entire light strips to be faculty and unable to light up. Therefore, testing the kits at table before customers come to your garage is so important for a professional custom car interior lighting installation garage. It’s a good way to ensure that the entire set of aftermarket car ambient lighting is working after receiving the goods no matter for stock or an installation order soon. At the same time, you can also take a detailed video of the automotive ambient lighting getting powered on and how’s the performance, then post to various social media for promotion. It will definitely surprise viewers coming to your video posts, and it will encourage friends who want to add more fun to their car driving life to get such premium and advanced auto accessories. Now get your car ambient lamp kits and follow the guidance to test!
Car Ambient Lighting Table Test Step-by-step
Take out the car ambient light accessories
An 18 lights car illumination lights kit includes two central control dash trim lights, four car footwell lights, four door handle light, four door storage box lights, four door trim lights, and corresponding cables and controller boxes. The number of special kit lights for different models will vary. Please contact the VOYEEGO team for your car mood lighting kit details if you want.
Take out all the accessories carefully and place the light in an open and safe area. Avoid bending or pressing so hard to the led strips or panels to prevent led chips inside from being damaged caused to paused installation.
Connection
Connect each auto led light to the control box. The main control box connects the footwell lights and the center control lights. The four-door control boxes are connected to the door light strips, handle lights, and storage box lights respectively.
Click the link to see how to connect: https://youtu.be/cNDzFH25HpQ
Get Powered on

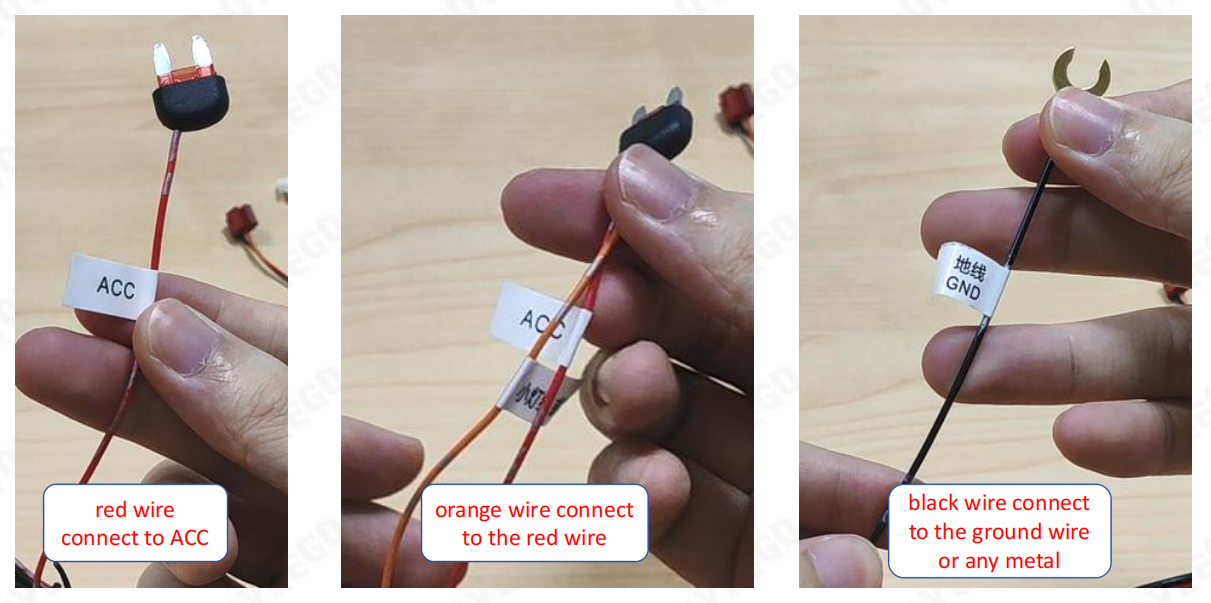

Connection to power: red wire ACC power wire connects to 12V, orange line (ILL) connects to red power wire, black wire connects to the ground wire.
Notes for For BMW kits: The ILL (orange wire) does not need to be connected when installing in the car, but it needs to be connected when doing table test.
App Control Test
After getting power, turn on the mobile APP to test whether all the functions of each led light working fine.

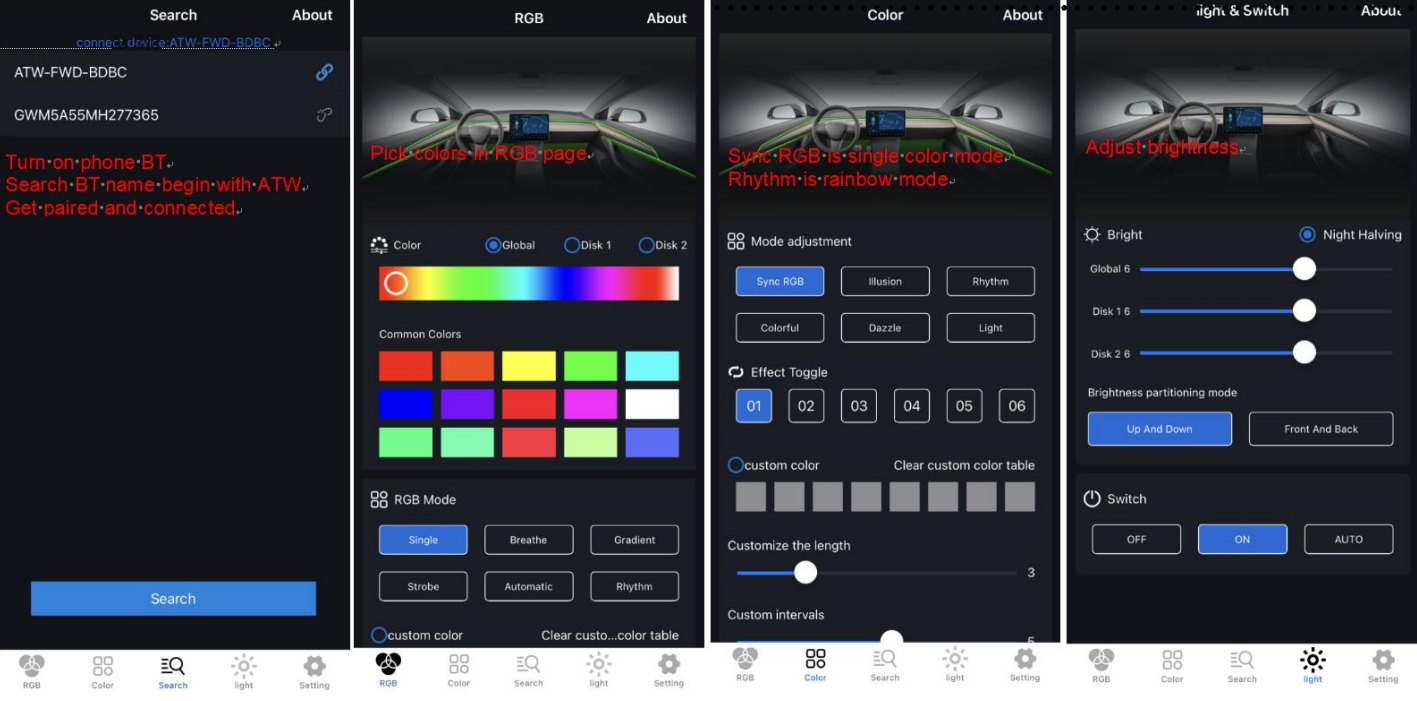

How to connect to the APP:
Go VOYEEGO application that controls the ambient light - turn on the mobile phone Bluetooth - go "Search" - click the "Search" button - click to connect the Bluetooth device starting with ATW.
The connection icon turns blue, indicating that the Bluetooth device has been successfully connected and you can start testing the lighting kit.
What to test?
The APP can change the colors, modes, brightness and other customized functions. Try to switch and see if the automotive led strips lighting is displayed normally.

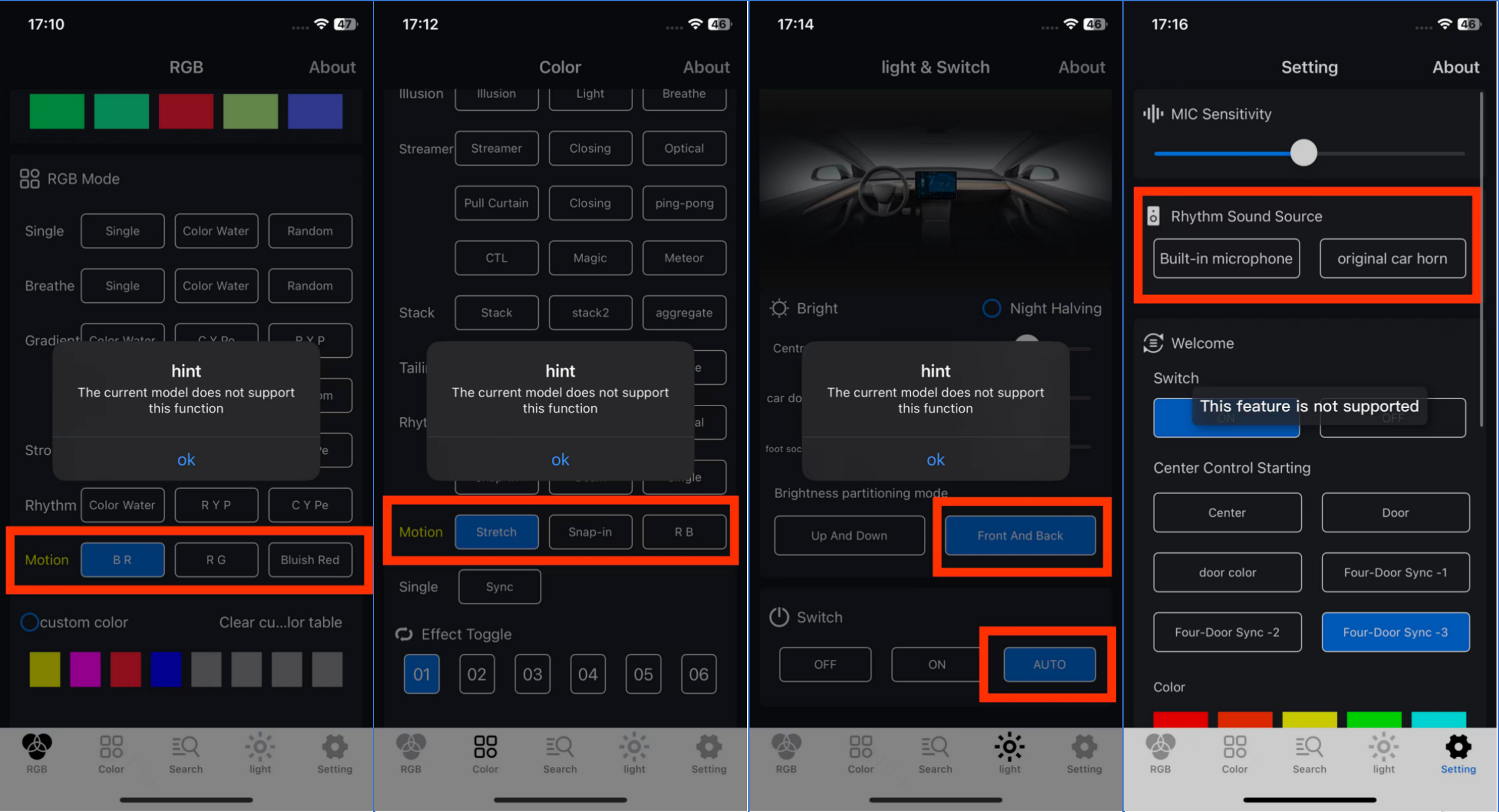

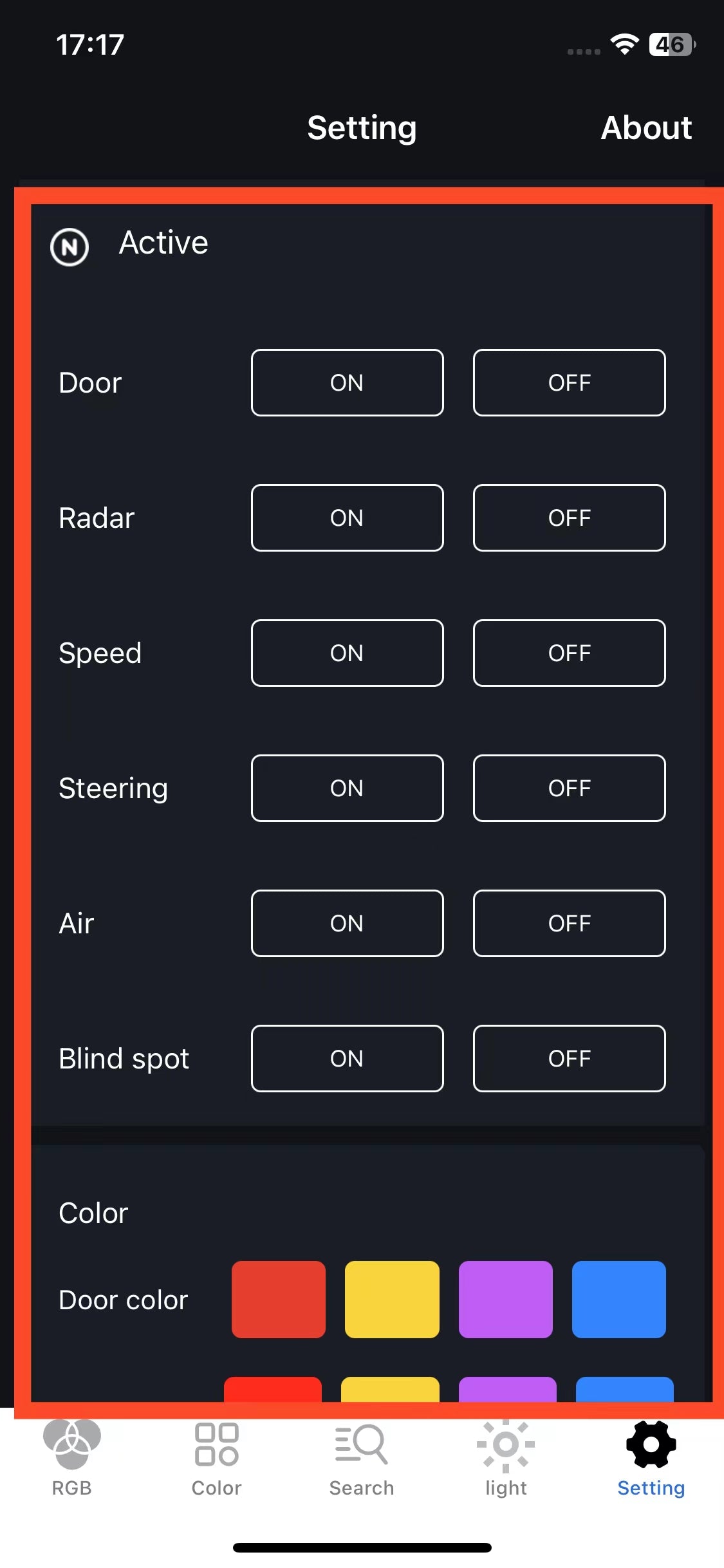

Notes: Not all functions in the application are available for all models. Some functions shown below are only applicable to some ambient led models.

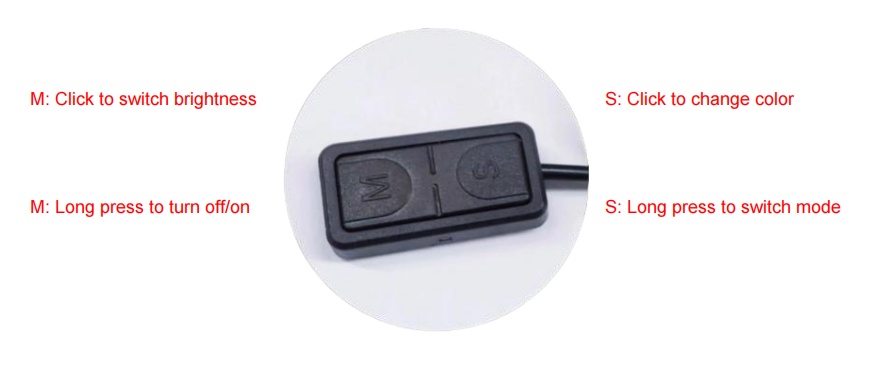

Button Control Test
Only the universal ambient light button model has a remote control button.
Each button functions are:
M: Long press to turn off/on
M: Press shortly to switch brightness
S: Long press to switch mode
S: Press shortly to change color
Table Test Finished
Pick up the whole kit and place them neatly in a safe place or back to the box, then wait for the arrival of the vehicle before taking them out for installation.
This test method is only applicable to VOYEEGO ambient lights (excluding OEM type Mercedes Benz ambient light models). Regarding the test details before installing the ambient light, you can contact us at any time if you have any questions. We would be happy to serve and answer all the questions. Follow VOYEEGO and you will learn more professional knowledge about ambient light modification in car.
